FPGA ROM
2020506 张胜
通过完成一个个具体的任务来逐步掌握精通 FPGA，成为一个设计的手段和武器。

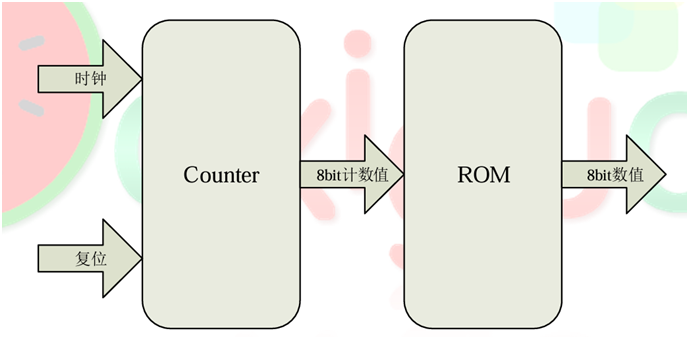

这里用到了计数器和ROM 两个模块 。在TOP程序中如何用代码组织起来。没有任何诀窍，就是把代码读熟，把实物和代码对上号。
module rom_top(clk,reset_n,rom_data);
input clk;
input reset_n;
output rom_data;
wire [7:0] counter_out;
counter counter_1(
.clk (clk) ,
.reset_n (reset_n),
.counter_out (counter_out)
);
rom rom_1 (
.address (conunert_out),
.clock (clk),
.q (rom_data)
) ;
endmodule

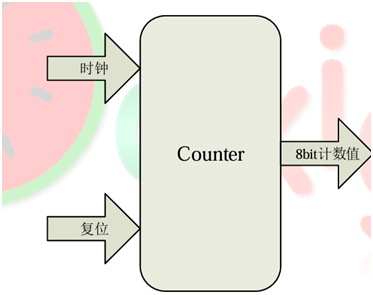

counter 模块
module counter(
clk,
reset_n,
counter_out
);
input clk;
input reset_n;
output [7:0]counter_out;
reg [7:0]counter_reg;
assign counter_out = counter_reg;
always @(posedge clk or negedge reset_n)
begin
if(reset_n == 1’b0)
begin
counter_reg <= 8’d0;
end
else
begin
counter_reg <= counter_reg + 1’b1;
end
end
endmodule
rom 模块 自动生成的
// synopsys translate_off
`timescale 1 ps / 1 ps
// synopsys translate_on
module rom (
address,
clock,
q);
input [7:0] address;
input clock;
output [7:0] q;
`ifndef ALTERA_RESERVED_QIS
// synopsys translate_off
`endif
tri1 clock;
`ifndef ALTERA_RESERVED_QIS
// synopsys translate_on
`endif
wire [7:0] sub_wire0;
wire [7:0] q = sub_wire0[7:0];
altsyncram altsyncram_component (
.address_a (address),
.clock0 (clock),
.q_a (sub_wire0),
.aclr0 (1’b0),
.aclr1 (1’b0),
.address_b (1’b1),
.addressstall_a (1’b0),
.addressstall_b (1’b0),
.byteena_a (1’b1),
.byteena_b (1’b1),
.clock1 (1’b1),
.clocken0 (1’b1),
.clocken1 (1’b1),
.clocken2 (1’b1),
.clocken3 (1’b1),
.data_a ({8{1’b1}}),
.data_b (1’b1),
.eccstatus (),
.q_b (),
.rden_a (1’b1),
.rden_b (1’b1),
.wren_a (1’b0),
.wren_b (1’b0));
defparam
altsyncram_component.address_aclr_a = “NONE”,
altsyncram_component.clock_enable_input_a = “BYPASS”,
altsyncram_component.clock_enable_output_a = “BYPASS”,
altsyncram_component.init_file = “sin.mif”,
altsyncram_component.intended_device_family = “Cyclone IV E”,
altsyncram_component.lpm_hint = “ENABLE_RUNTIME_MOD=NO”,
altsyncram_component.lpm_type = “altsyncram”,
altsyncram_component.numwords_a = 256,
altsyncram_component.operation_mode = “ROM”,
altsyncram_component.outdata_aclr_a = “NONE”,
altsyncram_component.outdata_reg_a = “CLOCK0”,
altsyncram_component.widthad_a = 8,
altsyncram_component.width_a = 8,
altsyncram_component.width_byteena_a = 1;
endmodulerom 模块
